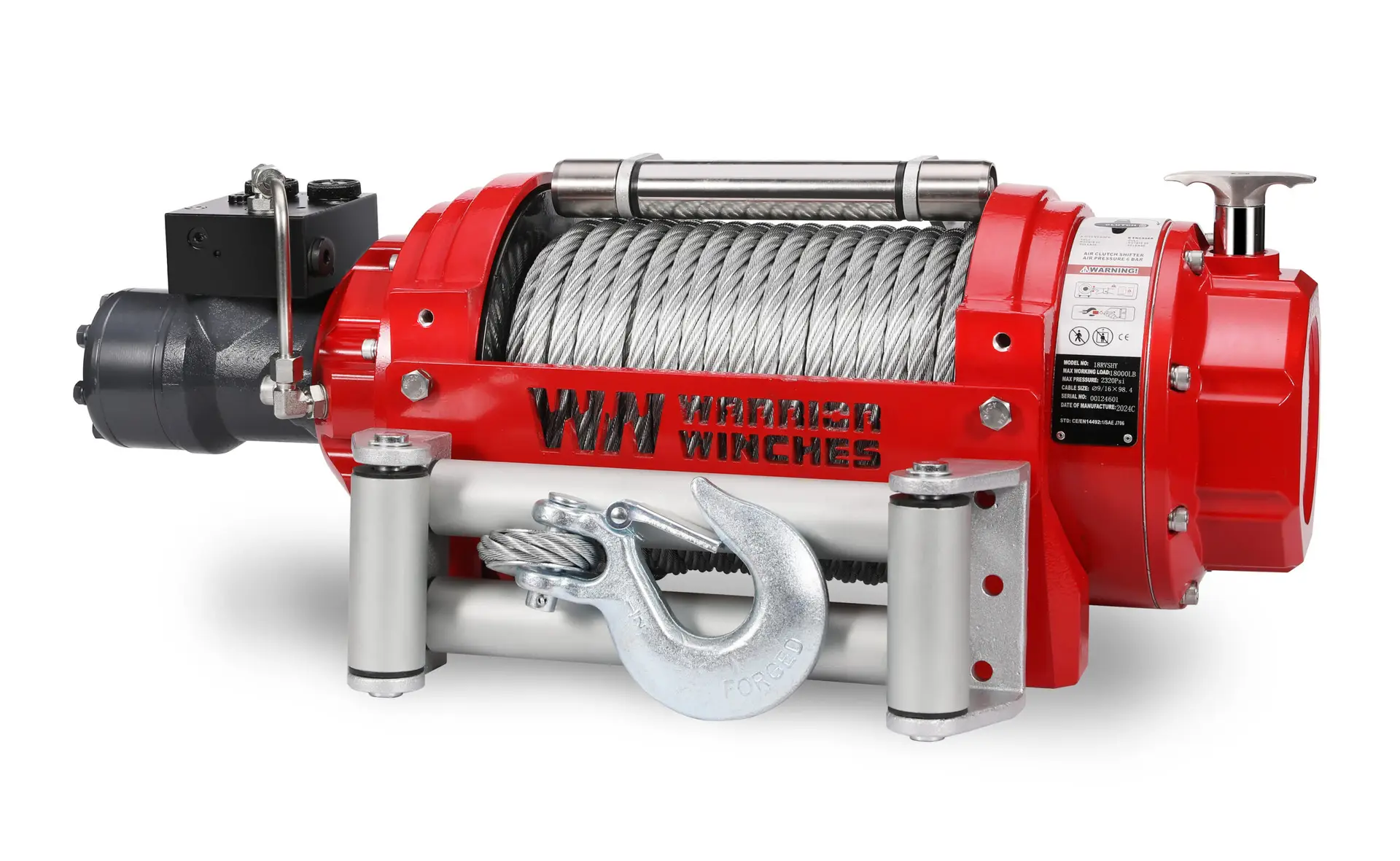

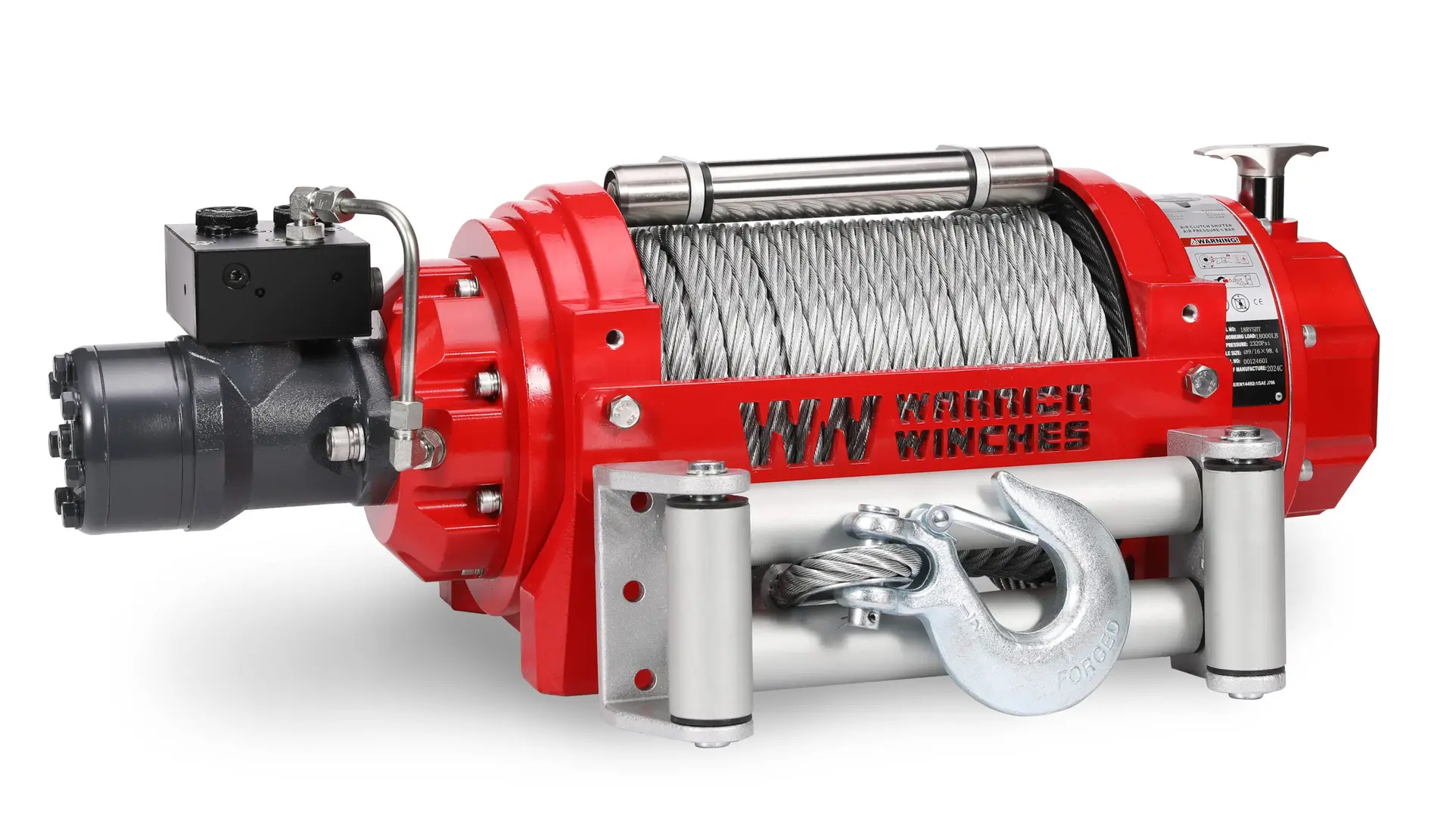

RV 15000 Hydraulic Winch – Steel Wire Rope
1 799,00 €
The RV series is specifically designed to meet EN 14992 and SAEJ-706 standards. They are designed for demanding commercial and industrial applications and are available in capacities from 3629 to 8165 kg. Safety is at the forefront, with the oversized steel cable having a 2:1 ratio and the cable attachment capable of withstanding up to 2.5 times the winch’s pulling force. The hydraulic brake can handle the full pulling weight, providing great control and added safety!
Features:
Approved according to EN14492-1 / Machinery Directive 2006/42/EC
Drum rope ratio 10:1
Steel wire rope 2:1 safety factor
Hydraulic brake that can hold the load
The cable attachment can withstand 2.5 times the nominal load
Reversible orientation: These winches can be mounted on the left or right side of the engine with the rope reeling from the top or bottom.
RV 10000 Hydraulic Winch – Steel Wire Rope
Warrior Winches’ hydraulic RV series is specifically designed to meet BS EN 14492-1:2006+A1:2009 and SAEJ-706 standards. The models are developed for demanding commercial and industrial applications and are available in capacities from 8000 lbs (3629 kg) up to 18000 lbs (8164 kg). The series also includes an 8000 lbs model with a short drum.
Safety is important to us, which is why we have oversized the steel cable 2:1 and the cable attachment can withstand up to 2.5 times the winch’s pulling force, providing the user with additional safety and reliability. The RV series hydraulic brake can withstand the full set pulling weight, providing great control, increased safety and reliability when winching.
The ISTR18 mounting plate is an optional accessory and is also approved to BS EN 14492-1:2006+A1:2009.
| Weight | 83,6 kg |
|---|---|
| Dimensions | 730 × 300 × 277 cm |
| Traction | 6804 kg |
| Mediation ratio | 17,3:1 |
| Switch | Manual |
| Brake type | Automatic brake in drum |
| Drum size | 127 x 266 mm |
| Cable type | Steel wire |
| Cable size | 12 mm x 30 m |
| Mounting pattern | 303.5 x 114.3mm, 368.5 x 171.2mm |
| Warrenty | 1 year |
| Maximum flow (l/min) | 10-60 |
| Maximum pressure MPa | 17,5 |
